VSL-FBW9-6

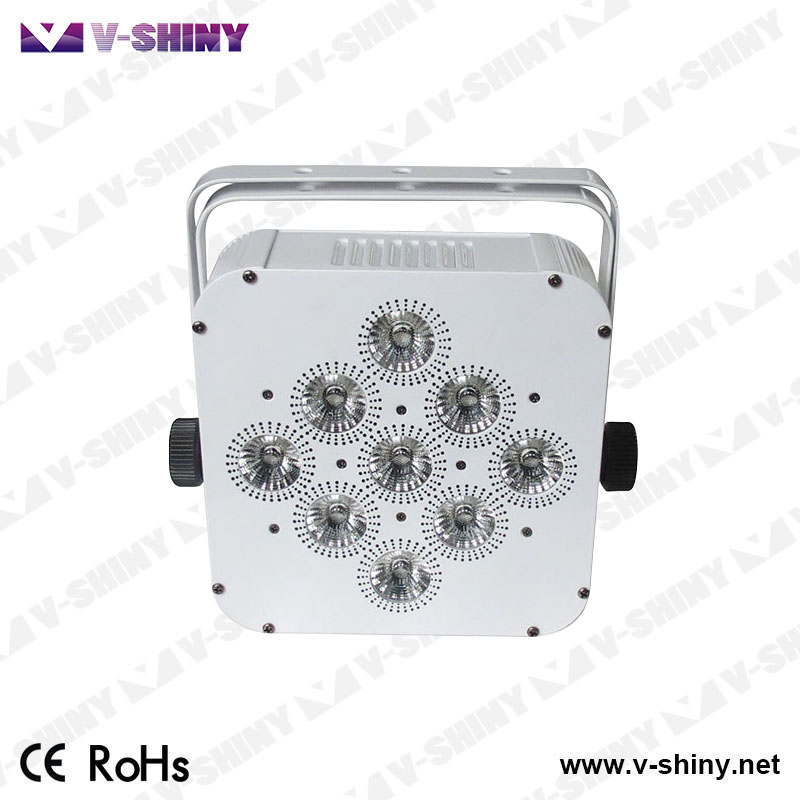

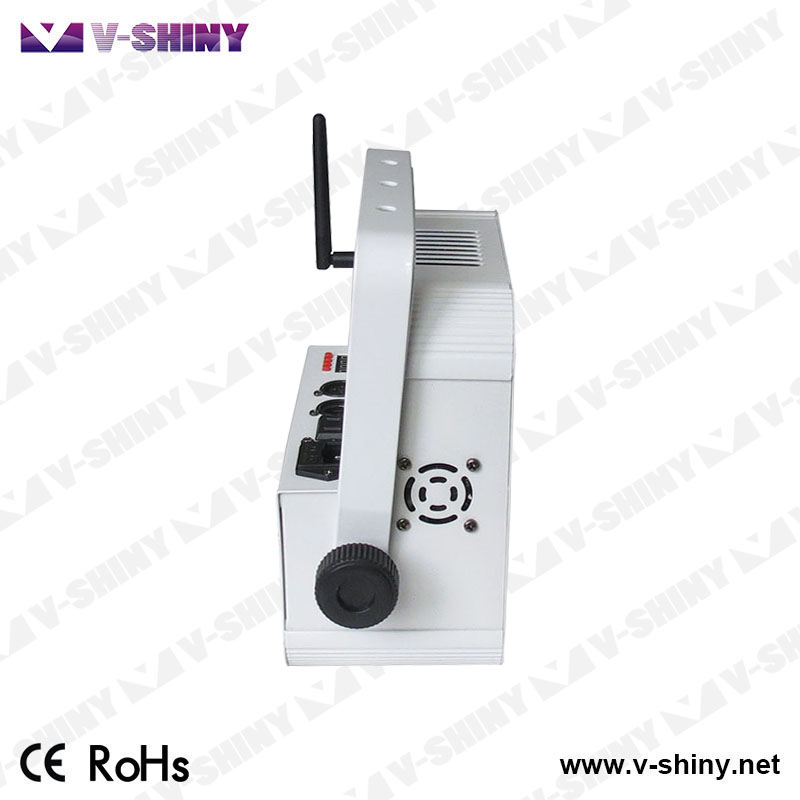

9PCS RGBWAUV 6-IN-1 Battery, wireless LED Flat LED Indoor Par Light
Parameters
Details
Video
Power supply: AC110V-250V 50-60Hz
Power consumption: 162W
Light source: 9pcs 18W high brightness 5 in 1 leds
Lamp life: 6-10 ten thousand hrs
LED angle: 30(±5) degree
Color: 16.7 million kinds of color change
Control channels: 6/10 chs
Control mode: DMX512,master/slave,auto,sound active(can order wireless DMX512 also)
Automatic model(by function button): color change, color strobe, color dimmer, color gradual change/color jump change
Operation menu: 4 digit digital LED display
Packing size: 240*130*250mm
N.W: 3kg G.W: 3.5kg

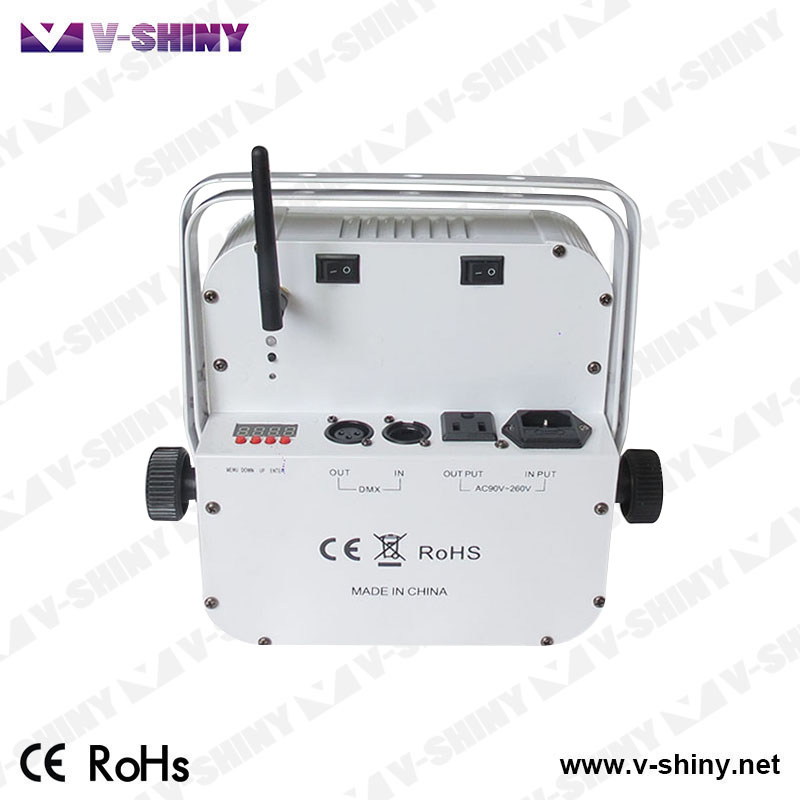

When use the fixture with DMX, not wireless, please switch the signal button for “off”
● When use the wireless DMX, please switch the button for “on”
● When charge the light, please switch both of the button for “of”. At the same time, if the switch for power is “on”, the light will be at work during the process of charge, but will consume some power from the charge; if the switch for power is “off”, the light will be blackout and not be at work.
Tip for the battery and charge:
● The battery can last for 4-5 hours when all LEDs on after full charge , and can last for more than 6-8 hours on auto running mode. Up to 20 Hours with one color diode on. Results will vary based on brightness of LEDs
●It is suggested to charge the battery for at least 4 hours, which will extend the life span of the battery
Power consumption: 162W
Light source: 9pcs 18W high brightness 5 in 1 leds
Lamp life: 6-10 ten thousand hrs
LED angle: 30(±5) degree
Color: 16.7 million kinds of color change
Control channels: 6/10 chs
Control mode: DMX512,master/slave,auto,sound active(can order wireless DMX512 also)
Automatic model(by function button): color change, color strobe, color dimmer, color gradual change/color jump change
Operation menu: 4 digit digital LED display
Packing size: 240*130*250mm
N.W: 3kg G.W: 3.5kg
When use the fixture with DMX, not wireless, please switch the signal button for “off”
● When use the wireless DMX, please switch the button for “on”
● When charge the light, please switch both of the button for “of”. At the same time, if the switch for power is “on”, the light will be at work during the process of charge, but will consume some power from the charge; if the switch for power is “off”, the light will be blackout and not be at work.
Tip for the battery and charge:
● The battery can last for 4-5 hours when all LEDs on after full charge , and can last for more than 6-8 hours on auto running mode. Up to 20 Hours with one color diode on. Results will vary based on brightness of LEDs
●It is suggested to charge the battery for at least 4 hours, which will extend the life span of the battery
